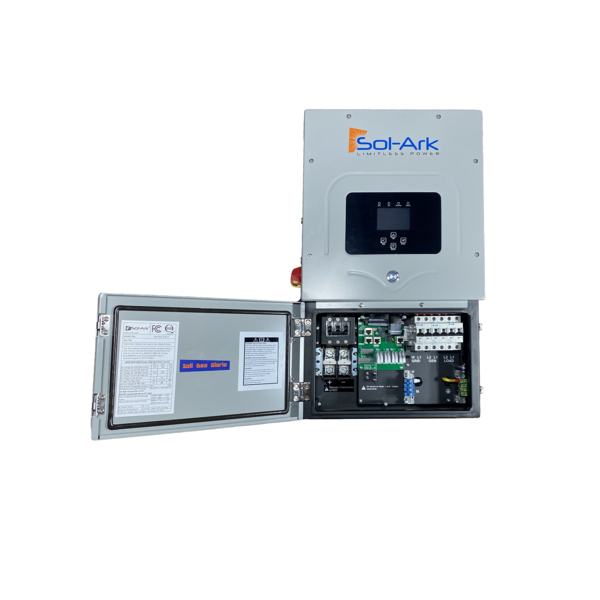

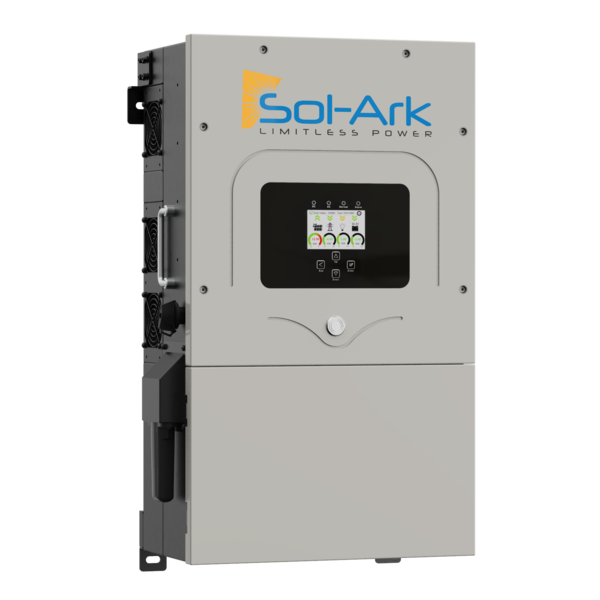

Sol-Ark Solar Inverter/Charger with built-in solar MPPT charge controller

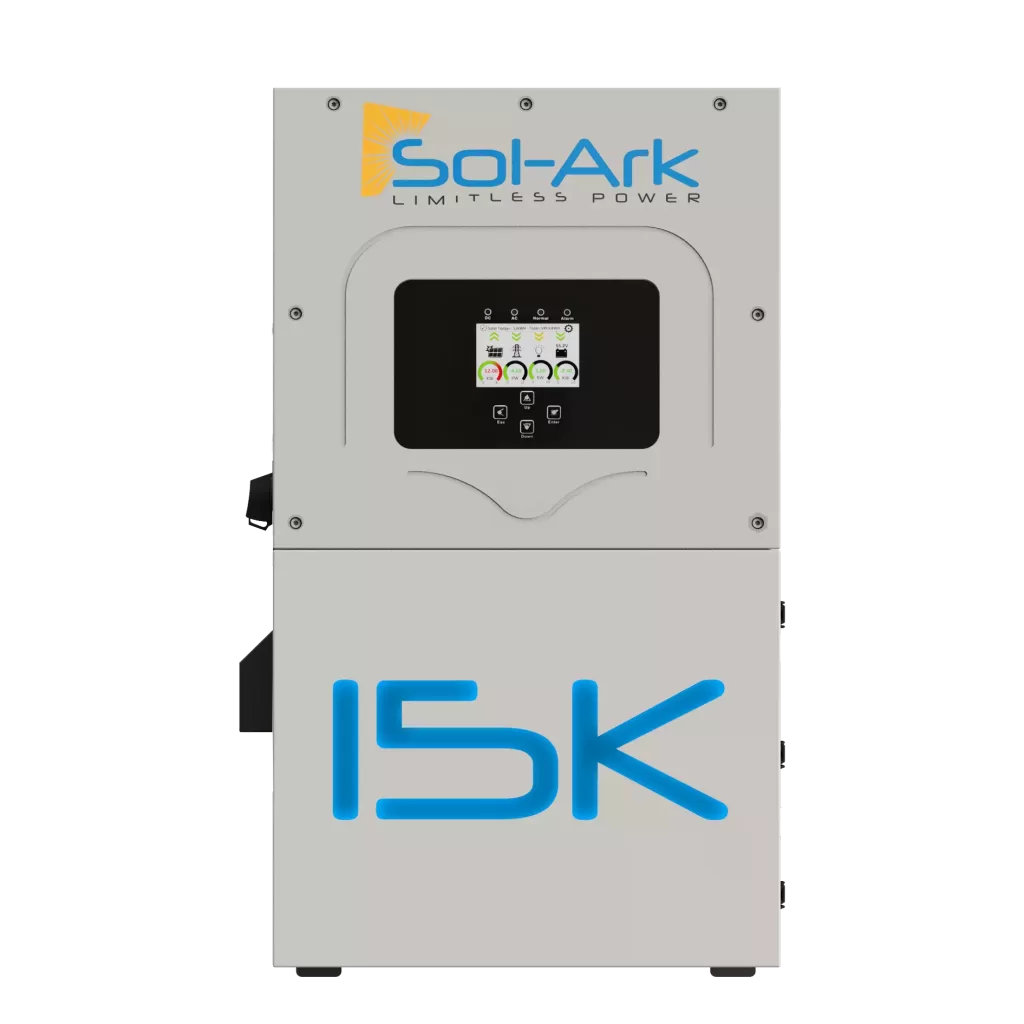

New 15K model with up to 19,500 watts Solar Input!
The Sol-Ark inverters can be used as a grid-tie PV inverter with or without a battery, or as an off grid inverter. The inverters feature Grid-Sell without batteries; Grid-Sell with battery backup; Grid-tied with Zero Export with or without storage; Time-of-Use/Peak Shaving; prioritized charging from renewables; and off grid. The Zero Export features can use any of the loads in the house, including those on the main service panel, what we call “primary” self-supply. Backup power is available to support the loads connected to the backup loads panel, with an extremely fast transfer time of 4ms.

These inverters use DC coupling from solar to grid and battery for greater overall efficiency. An AC coupled direct grid-tie inverter can also be used as the only source of solar or combined with DC coupled solar. The Sol-Ark can use any commonly available 48 VDC battery bank, including flooded, AGM, gel lead acid batteries, or 48 VDC nominal Lithium batteries. PV input voltage range is 150-500 VDC, allowing for longer PV strings. There are two MPPT inputs so that most any combination of modules can be accommodated. The inverter has both ground fault and arc fault protection built in. CT's can be installed on the house AC lines for export control and monitoring. Standby draw is 60 W. Included is a 250 ADC battery breaker, 63 AAC AC input and output breakers, and a 50 AAC generator input breaker. A battery temperature sensor, ground fault, and arc fault protection are included. There is a color touch screen on the front of the inverter (keep out of the sun). They are capable of WiFi and Ethernet to app or internet for monitoring and control.

The Sol-Ark 8k-48-ST and Sol-Ark 5k-48-ST come with a 5 year warranty, and 10 years optional. The Sol-Ark 12k-P Comes with a 10 year warranty. Multiple units of the Sol-Ark 12k-P can be stacked if more power is needed.

The Sol-Ark 12k-P-EMP is enhanced with Electro Magnetic Pulse (EMP) protection built in and surge suppressors for the input and output circuits. This gives extra protection from strong solar storms or EMP weapons. This is a special order item.

Many NEC rapid shutdown systems work with the Sol-Ark. APSystems, Tigo, and IMO FireRaptor can be used for module level shutdown. Either the switch on the inverter or a remote normally open switch can be used to trigger rapid shutdown. EMP hardening is an available option. Meets UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B, UL1741SA, CA Rule 21, HECO Rule 14H

New, now NEMA 3R outdoor rated. Dimensions are 30" H x 16.8" W x 9.4" D, 78 lbs. Operating temperatures of -13 °F to +130 °F (-25 °C to +55 °C).

Features:
•  Available modes; grid sell, meter zero, time of use, smart load, peak shaving, off grid
•  20 kW peak power surge to loads for 5 seconds
•  Balance of Systems in one box
•  Sol-Ark 12k can be parallel stacked (1-9)
•  System monitoring and control with WiFi or Ethernet
•   Open loop communications with many LiFePO type batteries, including Discover AES

Note: For Net Metering applications, if you have a 200A or greater service, you will need to buy a 200A Current Transformer pair. Sol-Ark inverters come with 100A CTs that are appropriate for 2/0 wire. The 200A CTs support 4/0 wire.

Listed by Battery Inverter Watts
5000 Watt SA5K-48-ST 75 lbs $4500
8000 Watt SA8K-48-ST 75 lbs $6100
9000 Watt SA12K-P 80 lbs $7100
9000 Watt SA12K-PEMP 80 lbs $8100
12000 Watt SA15K 90 lbs $8250

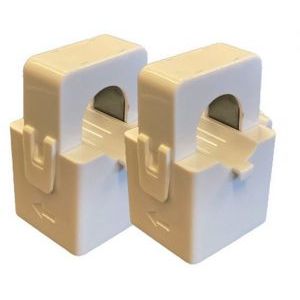

200A CT PAIR  5 lbs $69

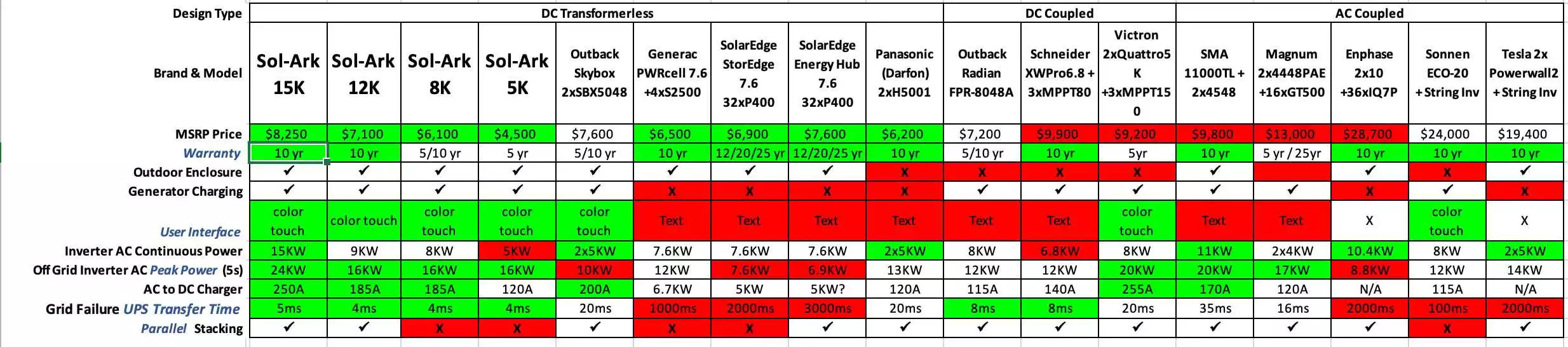

Comparison Chart

Schneider Electric Inverter/Chargers Split Phase 120/240 VAC 50/60 Hz

SW4048 48 volt, 3400 watts continuous, 4400 watts for 30 minutes, 7000 watt surge, 15.2 AC amps maximum continuous output, 41 AC amps peak output, 27 watts no load draw, 11 watts idle consumption search mode, 94% inverter efficiency, 45 DC amps battery charging, 92% charger efficiency, DC Input: 40-64 Volt DC, Maximum continuous power voltage range 46-48 VDC, Maximum battery current 105 ADC. Selectable 50 Hz or 60 Hz. Split phase 120/240 Volt AC, Two inverters may be connected in parallel for double the output. SW4048 77 lbs $1896

System Control Panel Graphical backlit LCD, selectively displays configuration, status and diagnostic information for all devices connected to the Xanbus network.   SPC 4 lbs $395

Shown with recommended optional Remote Meter

Series Stacking Interface  Connects two MS4024 inverters together for 120 volt and 240 volt AC output. MESSI 6 lbs  $

These modified square wave inverters provide a cost effective solution for smaller systems. The Power Factor corrected charger is 85% efficient. It uses less energy from a generator than a standard battery charger. This saves fuel, time and wear on the generator.  2 year warranty. 16.6” x 8.4” x 4.7”

1500 watt, 24 volt 35 amp PFC Charger MM1524AE 22 lbs $1028  Special $815

  Remote Control  6 LED with 25’ cable, MMR 2 lbs $68    Special $55        or use full featured Digital LCD Display Remote MERC50

MM 600 watt Inverter only (no battery charger feature)    Lower Cost

Modified square wave inverter. Ratings: continuous current 5 amps AC, 30 minutes power of 675 watts, 5 minute surge of 950 watts, no load power of 10 watts, search mode of 3 watts, input voltage range 9-16 volts DC. Has AC transfer relay. 2 year warranty. 16.6” x 8.4” x 4.7”
600 watt, 12 volt MM612  16 lbs  $555  Special $425

Remotely monitor and control MS, ME and RD inverters. Simplest to use, has full set-up features with one-knob™ programming. Optional control of Automatic Gen Start using network connections.
Controls: Charger on/off, Inverter on/off.
Indicators for Power, Fault, Charger, Inverter.
Soft Keys for Shore, AGS, Meter, Setup, Tech.
Energy Saver turns off display and LEDs after 5 minutes from last use. Turns on again whenever a change is detected. 50’ 4 wire cable.
Flush mounting, cutout 2.75” x 4.75”.
3 year warranty 3.75” x 5.75” x 1.125”

Advanced Digital LCD Display Remote          MEARC50 2 lbs $340  Special $275
Similar to above meter but with favorites and nonvolatile memory (retains settings when power is turned off). The ME-ARC is simple to use, yet allows full set-up of all the standard and advanced features available in Magnum inverters. The ME-ARC also has the option of controlling the advanced features of the ME-AGS-N Automatic Gen Start and the ME-BMK Battery Monitor Kit using a network connection to the inverter. This remote has convenient finger-tip operation, including the new one-knob programming.

Note: All settings/setup menus in the ME-ARC are compatible with MS-PAE Series inverter/chargers. If you are using the ME-ARC with another inverter/charger (other than the MS-PAE Series), some features and setup menus may not be compatible with your inverter and will not function. Contact Magnum Energy to determine if a particular feature/setup menus provided in the ME-ARC are compatible with your inverter. Phone 425-353-8833 Everett, Washington.

Stacking Router and Display
Connect 2, 3 or 4 same model PAE inverters together in parallel for more wattage.
ME-RTR  3 lbs  $520    Special $410

Note: If you are planning on connecting the MS-PAE Series inverter in parallel with another MS-PAE Series inverter, ensure they all have revision 5.1 or higher.

A “fuel gauge” showing percentage of battery charge, real time amps, amp hours, minimum and maximum DC volts.  The MERC50 Remote Display is needed with this to access information. Kit includes sense module, 500 amp shunt and wiring.  MEBMK  3 lbs  $235

Network model. 3-relay with voltage and temperature Start. Includes 10' network cable. MEAGS-N 3 lbs  $353

Standalone model. 3-relay with voltage and temperature Start. The ME-AGS-S Auto Generator Start controller is used in applications that do not include a Magnum inverter.  MEAGS-S 3 lbs $353

Earlier networking model Version 3.1. Includes 10' network cable. New in the box.
 MEAGS 3 lbs  $350

I300  10 lbs   $375

DR Display inverter case, new, (non-operational) looks like real inverter. Use for display, mockup or spare parts for another inverter.
20 lbs $130 Special $19

Lightweight, compact, efficient, 120 volt AC output, built-in AC outlet. With a sine wave output, most stereos, TVs, computers, front load clothes washer, radio equipment and other electronics will operate better than on modified square wave. Most copiers, laser printers a some cordless tool battery chargers will be damaged on non-sine wave power. Efficiency is 85-90%. Search mode not available. Protected for over voltage, under voltage, high temperature, reverse polarity, shorts and overload.   Made in USA. 66 VDC available special order.

XP125  Small portable with cigarette lighter plug. 125 watt continuous, 150 watt surge, 5 watts no load power. 1 outlet. 5” x 2.2” x 7.9”
I301 125 watt,  12 volt,     5 lbs    $295
I302 125 watt,  24 volt,       5 lbs    $295
I303  125 watt, 32/36 volt, 5 lbs   $295
I304  125 watt,  48 volt,       5 lbs    $295
I305  125 watt,  120 volt , 5 lbs     $295

XP250  250 watts continuous, 300 watts surge, 6 watts no load power, 1 outlet, plus connections for AC output and a remote On/Off control. 5.3” x 2.8” x 10.8”
I307 250 watt, 12 volt,      8 lbs,  $493
I308 250 watt, 24 volt,        8 lbs,  $493
I309 250 watt, 32/36 volt, 8 lbs,  $493
I310 250 watt, 48 volt,        8 lbs,  $493
I311 250 watt, 120 volt,    8 lbs,  $493

XP600  600 watts continuous, 1100 watts surge, 8 watts no load power, 2 outlets, plus connections for AC output and a remote On/Off control. 7.7” x 3.6” x 12.1”
I312 600 watt, 12 volt,      9 lbs,  $694
I313 600 watt, 24 volt,        9 lbs,  $694
I314 600 watt, 32/36 volt, 9 lbs,  $694
I315 600 watt, 48 volt,        9 lbs,  $694
I316 600 watt, 120 volt,    9 lbs,  $694

XP1100  1100 watts continuous, 2200 watts surge, 12 watts no load idle power, has 2 outlets plus connections for AC output and connections for remote On/Off control. 7.7” x 3.6” x 15.05”.
I330  12 volt,      15 lbs,        $830
I331  24 volt,        15 lbs,        $830
I332  32/36 volt, 15 lbs,       $990
I333  48 volt,         15 lbs,       $990
I334  120 volt,      15 lbs,     $990

XP2000  2000 watts continuous, 4000 watts surge, 12 watts no load idle power, has 2 outlets plus connections for AC output and connections for remote On/Off control. 9” x 4” x 18”.
XP2000-12     12 volt,      27 lbs,        $1750
XP2000-24     24 volt,        27 lbs,        $1750
XP2000-36     32/36 volt, 27 lbs,       $1980
XP2000-48     48 volt,         27 lbs,       $1980
XP2000120  120 volt,      27 lbs,       $1980

Catalog No.

Model

Length

Gauge

Ship Pounds

Price

RB71

Red and Black set

7'

1

6

$100

RB640

Red and Black set

6'

4/0

12

$180

D130

BC3-2/0

3'

2/0

4

$85

D131

BC5-2/0

5'

2/0

5

$99

D132

BC10-2/0

10'

2/0

10   In Stock

$170

D133

BC3-4/0

3'

4/0

8

$103

D134

BC5-4/0

5'

4/0

10

$175

D135

BC10-4/0

10'

4/0

20

$240

D136

BC15-4/0

15'

4/0

30

$

  Red/Black 12" #2   D144  1 lb $13

Red/Black 12"  2/0  D145  2 lbs  $20
red   20”    2/0    D137   2 lbs     $25
black   20”   2/0  D138     2 lbs    $25
red/black  20”  2/0  D139    2 lbs  $25

red     18”    4/0   D140     3 lbs  $30
black   18”    4/0  D141   3 lbs   $30
red/black  18”  4/0   D142  3 lbs  $30
