Click on pictures for a larger view. Sold as is.
Tower with Winch $358
Power Unit $550
Water Well Drilling
Small, portable, inexpensive water well drilling outfit that
is designed for the do-it-yourself person. Drill your own wells or drill
wells for other people. Can also be used for horizontal boring in hill sides
or under roads.
Water is pumped into water
injector swivel, travels down the drill stem, out thru the bit, then up to
the top of the ground while flushing out the dirt as you drill. The ratchet is used to speed up adding
or removing the 5' drill stems. A 2" pilot hole is drilled first and then
using the 3.5" reamer to make hole larger. The more expensive 3.5" bit is used to make
3.5" hole in one pass or for drilling through a limestone layer. The 5"
bit is made for larger drill stems and would need a pipe coupler welded on
to attach to these drill stems. This rig was used years ago to drill 70' deep and
through a 6" layer of limestone.
TOWER BASE is 23" by 43" with a 5'
stabilizer bar. Base frame is constructed from 14 gauge square steel tubing.
Wheels can be attached for easy movement when augering fence post holes.
Heavy 10 gauge upright support brackets increase stability of the tower.
POWER UNIT has a 3 horsepower Tecumseh, 2 cycle gasoline engine (2
cycle engine used to facilitate horizontal drilling) with a 15:1 gear
reduction transmission running in an oil bath and a heavy duty centrifugal
clutch. Comes complete with handles for use without a tower if desired.
WATER INJECTOR has chrome plated inner shaft which runs in oil-lite
bronze bushings and an aluminum outer body eliminates any rust problems.
Injector comes with two specially formulated rotary hydraulic seals suited
DRILL STEMS are made from schedule 80 A-120 seamless steel tubing which has a wall
thickness of 0.156. Each 5' section is supplied with an oversize coupling
which allows the ends of the stems to butt together for added strength.
DRILL BITS have tungsten carbide cutting edges.

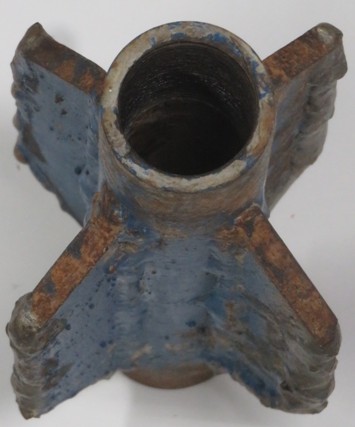

DRILL BIT AND 3.5" REAMER flanges are made from 1/4" C-1044 high carbon
steel. Tungsten carbide granules imbedded in a brass matrix complete the
cutting edges. Reamer is 4-bladed so as to reduce vibration and increase
value when new. only $798
Engine and Speed Reduction Gearbox
Water Injector $210
5' Drill Stem
14 pieces 100'
2" Pilot Bit
3.5" Ream Bit
8" Auger 34" long
For post holes
3.5" Bit $220
3.5" Bit 6 lbs
5" Bit 10 lbs
Electric System for Sale
Make an offer and put this equipment to
work for you.
Trace SW2512 sinewave inverter
2500 watt 12 volt with 150 amp Battery Charger $2000
6-BPSolar 590UL 90 watt, 18.5v, 4.86 amps PV Modules with premium Saturn
UTR 055 Track Rack solar mount and tracker $900
Trace C40 Charge/Load controller $175
TriMetric Battery Monitor with 500 amp shunt $167

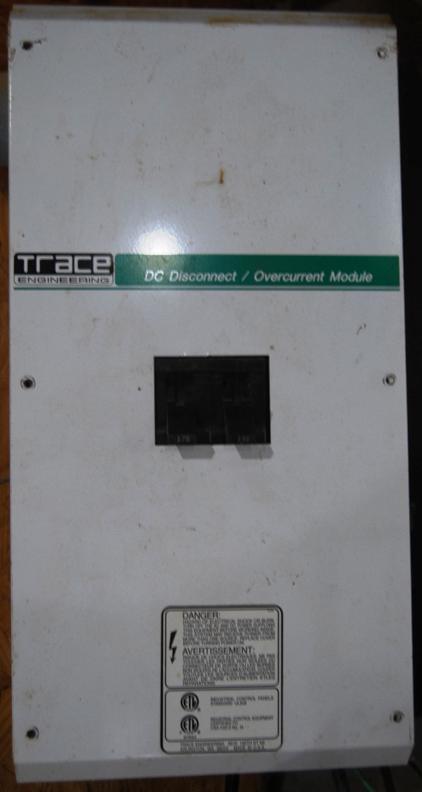

Trace DC Disconnect with 250 and 175 breakers $405
2 KVA T-Former auto transformer 120v/240v $300
Trace temperature sensors $25
battery connectors, cables, misc.
Used for 13 years. All items were working as designed when taken down.Can be deliver within 300 miles of Jasper, Georgia. Purchase prices are listed. Click on
pictures for a larger image.
