Breakers, Panels, Fuses, Lightning Arrestors

Panel Mount DC Breakers
125 volts
, Breakers are front mounted.



Model Amps   Width  Stud Size    lbs        Price

MNEDC250      1.5         3/8”              4           $142

MNEDC175       1.5         3/8”              4           $142

MNEDC125        1”        1/4”               1            $70

MNEDC100      3/4”      1/4”                1            $27

MNEDC90         3/4”      1/4”                1         $27

MNEDC80         3/4”       1/4”               1         $27

MNEDC70         3/4”       1/4”               1         $27

MNEDC60         3/4”       1/4”               1            $27

MNEDC50          3/4”       1/4”               1           $27

MNEDC40          3/4”       1/4”               1           $27

MNEDC30          3/4”       1/4”               1           $27

MNEDC20          3/4”       1/4”               1           $27

MNEDC15          3/4”       1/4”               1           $27

MNEDC10          3/4”       1/4”               1           $27

MNEDC5             3/4”       1/4”               1        $27

DIN rail mounted Breakers

Use in PV Combiner Boxes, Baby Boxes, E-panels, Mini DC Disconnects. For 12, 24, 36, 48 and 60 Volt DC systems with PV array open circuit voltages up to 125 VDC. Load break rated. 125 VDC max open circuit with elevator type compression terminals for #2-14 AWG bare wire. Compact 13mm wide.

63 amp  MNEPV63  1 lb  $22

50 amp  MNEPV50  1 lb  $22

40 amp  MNEPV40  1 lb  $22

30 amp  MNEPV30  1 lb  $22

20 amp  MNEPV20  l  lb  $22

15 amp  MNEPV15  1 lb  $22

10 amp  MNEPV10  1 lb  $22

8 amp    MNEPV8     1 lb  $22

2 amp    MNEPV2     1 lb  $22

1.5" Breakers

1" Breakers

Ground Fault Protector is required by NEC2008 for all Solar Electric installations. The 63 amp model DIN rail mounts like 2 breakers. The 1/2 amp side connects between battery negative and earth ground. The 80 amp model front mounts like the panel breakers.



     MNDCGFP63  63 amp   2 lbs  $88



     MNDCGFP80  80 amp   2 lbs   $88

3/4" Breakers

IMPORTANT! Polarity of the din rail DC breakers.  These breakers are polarity sensitive. This means that they need to be installed correctly in order to insure that they will be able to trip if called upon to do so. In a PV combiner the + sign marked on the breaker connects to the PV positive output. The same breaker when hooked up to the battery circuit (not in a PV combiner) hooks up a little different. The + sign hooks up to the battery plus. This hook up is not obvious. The + sign designates the highest potential should be connected there. This is an easy one to determine in a PV combiner. Follow the current path through the combiner, into the PV input of a charge controller and out of the controller to an output breaker and then into the battery plus. You would think that the end of the output breaker connected to the controller would be at a higher potential than the battery plus. In normal operation this is true. The main job of this output breaker is to trip when and if there is a catastrophic failure. (Any manufacturer of power electronics will tell you that power electronics can fail). If the output breaker fails to trip, you are at risk of fire from the output wires burning up. When a charge controller fails, they always short from positive output to negative output. Since these two terminals inside the charge controller are normally connected up to a very large battery bank, you have a direct short across the battery bank if the controller fails. During this condition, the controller is acting like a piece of wire. The battery positive terminal is the highest potential! Make sure that the plus (line) of the breaker is connected to the battery plus terminal. If the breaker is connected backwards, it can fuse in the closed position as it attempts to open. That could ruin your entire day! Important information provided by MidNite Solar.

200 Amp Breaker up to 60 volts
Mounts on a DIN Rail 200a60v 2 lb $69

DIN Rail 8" long, 1.38" wide, 0.3" thick DIN Rail .5 lbs $4



AC DIN-mount Breakers
50 amp 277 Volts AC Breaker, OutBack Brand, DIN-mounted, set-screw compression terminals for 14 to 2 AWG wire. 1" wide    DIN50DAC  1 lb   $65  Special $25
20 amp
, 120 Volts AC 1/2" wide  OBAC-20    1 lb
$29   Special $14
30 amp, 120 Volts AC 1/2" wide  MNEAC30  1 lb  $22   Special $14

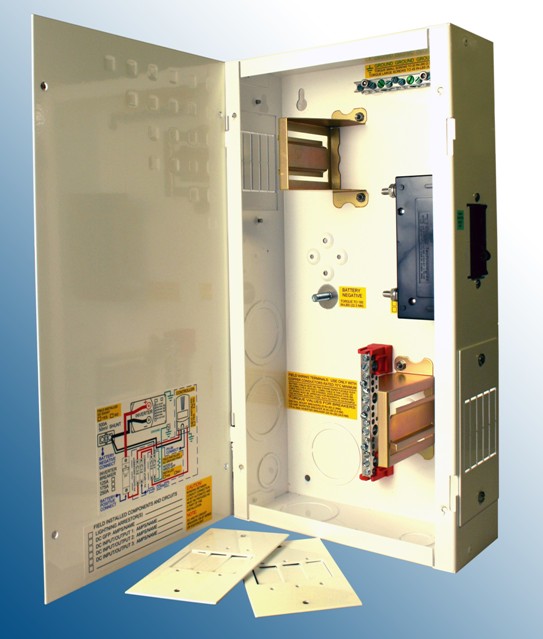

Mini DC Disconnect Power Center Low cost  -  Compact

This popular and versatile white aluminum box is used for small solar, wind, hydro and other projects where DC breakers are needed.
It includes one large 125 volt DC breaker for inverter, a din rail for mounting 5 additional breakers (for DC loads, charge controller, battery meter, etc.), a ground bus, mounting holes for 500 amp shunt and 5/16" bonding stud for battery minus. ETL listed for US and Canada. 17" x 9" x 4"

125 amp Breaker MNDC125  11 lbs  $310

175 amp Breaker MNDC175  11 lbs  $360

250 amp Breaker MNDC250  11 lbs  S360

Plus models have another din rail allowing up to ten din rail mount breakers. Two din rail cover plates and two panel mount plates are included. The panel mount plates allow for mounting the 3/4” 125VDC breakers ranging from 60 to 100 amps. You can also fit the MNDC-GFP80 plus four more panel mount breakers. Another configuration would be one MNDC-GFP, one 3/4” panel mount breaker and five din rail breakers as well as the large 125-250A inverter breaker.

Plus Models

125 amp Breaker MNDC125+ 12 lbs  $380

175 amp Breaker MNDC175+  12 lbs  $425

250 amp Breaker MNDC250+  12 lbs  $425





 Baby Breaker Box

General use enclosure for retrofits, small inverter disconnects, PV disconnect, AC or DC distribution circuits and more. Has 3/4” and 1” knockouts each end. Space for 1 to 4 compact DIN rail mounted breakers. 7” x 3” x 2-5/8” deep. Breakers not included.

MNEBB  3 lbs  $59

Big Baby Breaker Box

Enclosure hold up to 4 DIN rail breakers. Ground terminal accepts up to 1/0 wire. Also has mounting holes for optional Insulated Short Terminal Bus Bars (MNSBBR, MNSBBB, MNSBBW) 4”x 8”x 3” deep. Breakers not included.

MNEBBB  4 lbs  $71

Quad Breaker Box

Enclosure for up to 4 Panel Mount style breakers 3/4” wide. Conduit knockout on each end. 8”x 5” x  4”. Breakers not included.

MNEDC  6 lbs $92





2 E-Panels with Magnum Inverters and Classic Charge Controllers
We have E-Panels available for Magnum, OutBack, Xantrex inverters.



Auto Transformer for 120/240 volts AC and fan. 4kVA rated, fan increases rating to about 6kVA. OutBack, no enclosure.  X-240 36 lbs $425


ATC Fuses 35¢ each       Limited  Special 10 for $3

Blade type fuses were designed for the auto and RV industry. They make better contact with fuse holders than the cylinder shaped AGC glass fuses commonly used in low voltage applications. 0.01 lb

D017  3 amp
D012
  10 amp
D013
  15 amp
D014
  20 amp
D015
  25 amp
D016  30 amp

ATC Inline Fuse Holder

Low cost protection. Use up to 30 amp fuse. Just cut the 10 gauge wire loop and splice in series with the load. Has fuse cover. Fuse not included.


D006 0.5 lbs $5

Limited  Special  $2

100 Amp DC Fuse Holder

For fusing between battery and small inverters or DC Circuits. Uses Class R Fuse. Up to 600 volt rated, fuse holder has connector lugs for 6 to 2/0 gauge wire. 8-1/8" long x 2" x 2-9/16"

100 amp fuse holder 2 lbs $30
Limited  Special
  $9

Class T Fuse & Holder

Use to protect Square D circuit breakers, inverters or other large loads. Install between battery and load. Includes plastic cover.


400 amp   Fuse and Holder D024  2 lb $95     400 amp    Fuse only D025  1 lb $56
300 amp
Fuse and Holder D026 2 lb $95          300 amp    Fuse only D027 1 lb $50
200 amp
Fuse and Holder D028 2 lb $87         200 amp  Fuse only D029 1 lb $59
110 amp    Fuse and Holder D030 2 lb $59         110 amp  Fuse only D031 1 lb $39
110 - 200 amp Fuse Holder
no Fuse, stud terminals  D028A 2 lb $19



DC Circuit Breakers 175 or 250 amp

Use Between battery and inverter as a disconnect and over-current device. Meets National Electric Code requirements as a battery disconnect. Nice match for large inverters. More efficient than a fused disconnect and can withstand larger fault currents than fuse. Has 25,000 amp interrupting capacity at 65 volts DC, 10,000 amps at 125 volts DC. Two recessed nuts in face for front mounting with No. 10 bolts. Terminal lugs can handle up to 250 MCM wire size.

D100  250 amp  5 lbs  $200      Special $175
D103
 175 amp  5 lbs  $200      Special $175

Breaker Mounting Kit

4 long bolts with nuts and 2 brackets to mount in Xantrex or Schneider Electric DC Disconnect or to a back plate.
D101
1 lb  $19

100 amp Breaker 12, 24, 32 volt, waterproof, 1-15/16” x 2-7/8”, 1-1/2” thick, manual reset, rubber terminal covers.  D118 1 lb $65
Limited Special
$20

50 amp Breaker, 12-24 volt, manual reset. D119 1 lb $35   Special $5

30 amp Breaker, 12-24 volt, manual reset.  D117 1 lb $35   Special $5

200 Amp Breaker up to 60 volts
Mounts on a DIN Rail 200a60v 2 lb $69

DIN Rail 8" long, 1.38" wide, 0.3" thick DIN Rail .5 lbs $4

PV High Voltage Disconnect Switch 4 pole, 500 volts 14 amps, or 2 pole 32 amps. Snap action, lockable.  Outdoor rated NEMA 4X, 1000 volts maximum rating at reduced amps.  7" x 3.85" x 4.2" IMO 1576001 2 lbs  $97

Wire  #10 gauge, 2 conductor twisted, stranded THHN or THWN, type TC outdoor rated sunlight resistant, direct burial. Red and black colored conductors. Black outer jacket.   D070  lbs $1.50 per foot




PV Combiner Boxes

Mount near the Solar Electric (PV) Modules. Use to connect small wires from each PV Module to large wires from the Solar Charge Controller.

Holds 3 - 150VDC breakers or 3 fuses, has 60 amp bus. 10.5" x 5" x 3.5"  MNPV3  4 lbs $154

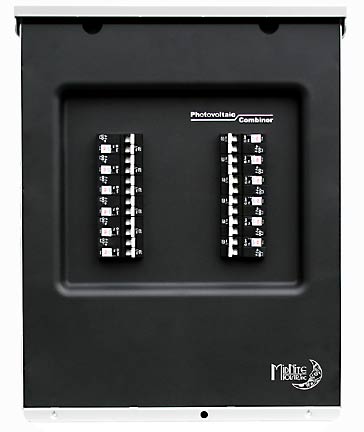

Most popular model holds 6 - 150VDC breakers or 4 fuses holders, has 120 amp breaker bus and 80 amp fuse bus. 13" x 8" x 3.5"
MNPV6
  6 lbs $191

Holds 12 - 150 Volt DC breakers or 10 fuses, has 200 amp breaker bus.  Plus busbars can be combined or separated to support 2 inverters or charge controllers.
MNPV12  9 lbs  $330

Holds 6 - 300 volt DC breakers, 168 amp breaker bus. 14.7" x 12.4" x 3.7"
MNPV12-250
  9 lbs $342



MNPV12 with 12 breakers

MNPV12-250

  MNPV16

MNPV3 with cover off

MNPV12 with 10 fuse holders

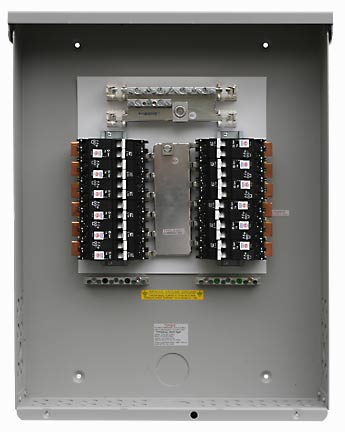

MNPV12-250 with cover off

MNPV16 cover off

MNPV6







Flexcharge Surge Arresters



12-24 volt DC breakdown voltage is 60-90 volts     SA1224DC 1 lb $56
36-48 volt DC breakdown voltage is 116-174 volts SA3648DC 1 lb $56
120 volt AC    breakdown voltage is 225 volts        SA120VAC 1 lb
$56

MidNite Lightning and Surge Protector Device The SPD is offered in three different voltages to maximize the required protection level. 600 volt model is MNSPD600 and the same price as the others. Protection is achieved by reducing the clamping voltage to a safe level that your system can sustain without damaging any electronics in the system. The MNSPD is designed to clamp a 115,000 amp surge!

The MidNite Solar 115V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3. Protection for battery circuits.

0-110 volts. Do not exceed 115 volts.  Ideal for 12,24,36,48 volt systems. LED indicators let you know if device is still operating. 115,000 amp

MNSPD115  2 lbs
 $135

The MidNite Solar 300V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3. Protection for Classic and other charge controllers, off grid PV combiners and 120/240 VAC circuits.

Nominal 0-300 volt AC, 0-385 volt DC. LED indicators let you know if device is still operating. 115,000 amp

MNSPD300  2 lbs
$135

The MidNite Solar 600V Surge Protector Device (MNSPD) is a Type 1 device per UL1449 rev3 and has an outdoor rating of 4X for outdoor use. Protection for grid-tie PV combiners and inverter input circuits. LED indicators let you know if device is still operating. 115,000 amp

MNSPD600  2 lbs $135

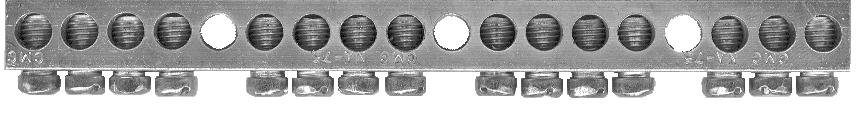

Terminal Bus Bars
Has eleven #6 and four 1/0 wire holes. Metal is 4-5/8" long. Insulators are colored. Overall length is 4-7/8". Mounting holes spacing is 4-1/8".

Black insulator    MNTBB $25
Red insulator      MNTBR
$25
White insulator MNTBW  $25
No insulator Ground Bus Bar MNGBB
$15

Short Terminal Bus Bars

Has four #6 and two 1/0 wire holes. Metal part is 2-5/16" long. Insulators are colored. Overall length is 2-9/16".

Black  MNSTBB 1 lb  $23
Red    MNSTBR 1 lb  $23
White MNSTBW 1 lb  $23
