Kansas Wind Power-W, 13569 214th Road, Holton, KS 66436       Phone/Fax: 785-364-4407



Hydraulic Ram Pumps     use water to pump water

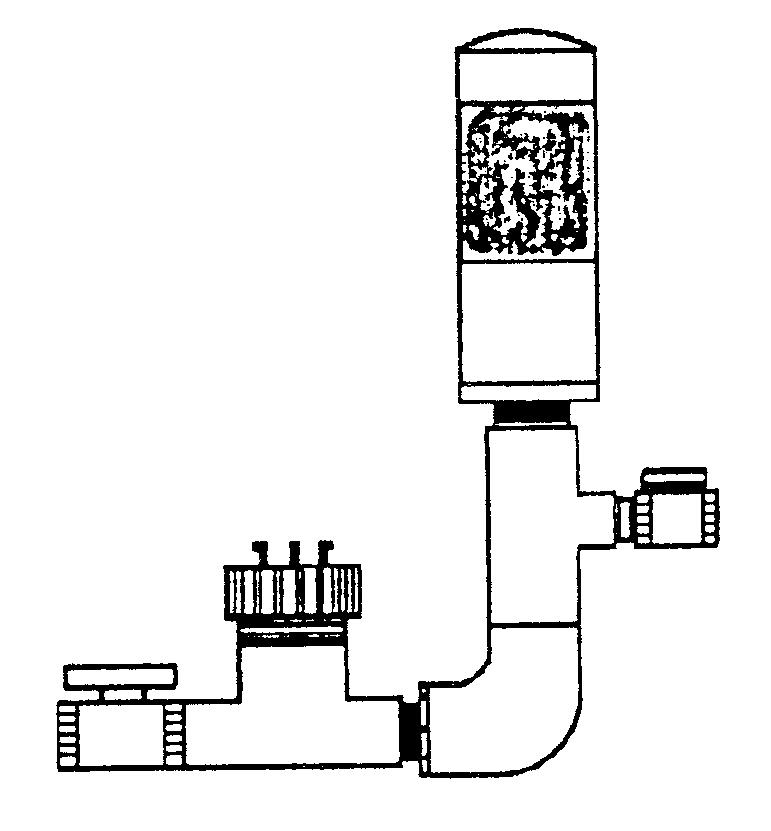

Hydraulic Ram Water Pumps have been used for many years to move water without electricity. Our B & L ram pumps are made of PVC for low cost, low weight and good performance. Inlet pipe to the water ram pump must be 3-15 higher than ram pump with at least 3 gallons per minute (gpm) for operation. To lift water 30 above ram pump, a 3 input drop will work (a 10 to 1 ratio). A 6 input drop ( a 5 to 1 ratio) would increase flow. Calculate flow rate with this formula: V x F x 0.5 E = D. Volume of available water flow in gpm is V, vertical fall from water source to ram is F, vertical lift from hydraulic ram pump to top of delivery pipe is E and flow rate in gpm delivered is D. Use our hydraulic ram pumps with a spring, dam overflow, stream with enough drop to pump water for garden, orchard, livestock, pond, house cooling. Use more than one hydraulic ram pump for more water pumped. Two valves are included with 1,1 & 2 models. Discharge valve is 1/2" on 1" ram and is 1" on the 1" and 2" ram.



            Inlet    Gallons/day     lbs       Price
P501
   1         700/1800       12        $180
P502
   1      700/3000       15        $210
P503
   2         700/4000       20        $230

Strainers   Keep unwanted leaves, sticks, bugs and other debris out of the ram pump. PVC
P511   1"      2 lbs    $20
P512
1.5"   2 lbs    $25
P513
2"      3 lbs    $30


Intake pipe is same diameter as hydraulic ram pump. Intake pipe must be at least 5 times longer than fall. If the fall is 3 then the intake pipe must be at least 15 long. If the intake pipe is much over 5 times longer, then a stand pipe should be used to vent air. A quality garden hose can be used for discharge pipe. Picture shows: 1. Amount of water needed?   2. Flow in gallons per minute.   3. Fall or vertical drop.   4. Vertical lift to discharge.  5.Horizontal distance form source to ram.   6. Length of delivery pipe.

We can special order very heavy built metal Rife ram pumps for larger lifts and volume.



Highlifter Water Pump    powered by water pressure

This is different from the normal hydraulic ram pumps. Water pressure moves pistons to pump water. At least 1 quart of water flow with a pressure of 6 to 60 psi (14'-138') is required. Model H44 is rated maximum 1500 gallons per day, 440 maximum lift. Model H49 is rated 750 gallons per day, 1000 maximum lift. Volume of water pumped depends on lift, input pressure and input flow rate. The replaceable seals normally last about 1-3 years in continuous operation. Made of stainless steel, Teflon and acrylic, safe for drinking water, 26" long. 1 year warranty from manufacturer. Information sheet available.
H44  10 lbs
$1200
H49  10 lbs   $1200
