Photovoltaic Modules
Make electricity from free, quiet, non-polluting sunlight. No moving parts.|

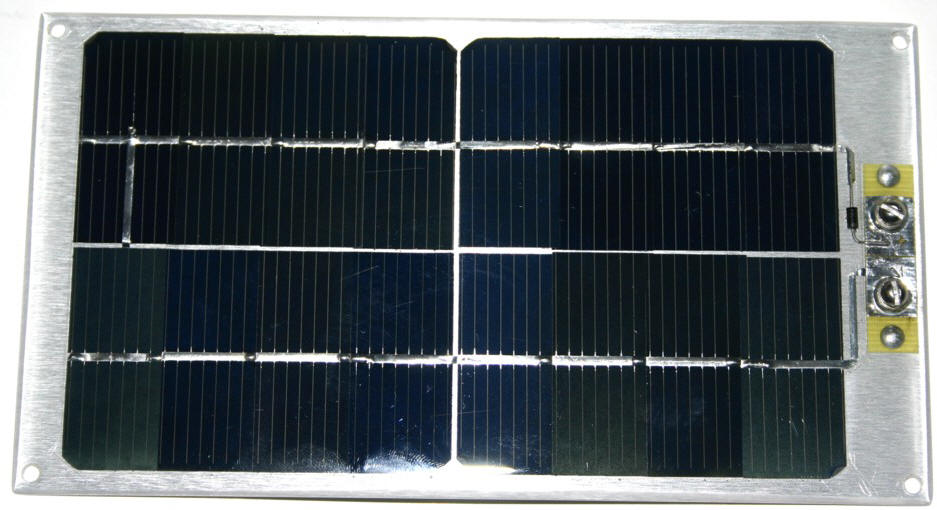

Solar Cells convert sunlight (light not heat) into DC
electricity. Cells are wired together and sealed to form a module. Modules are
normally constructed with a low-iron tempered glass cover,
anodized aluminum frame, ethylene vinyl acetate (EVA) around the cells, tedlar
back cover and a junction box. Two or more modules are connected together to
form an array. When modules are parallel connected, the voltage output is
the same as one module and the amps are added together. Two 12 volt modules
series connected will have 24 volt output with the same amps as one module.
Single crystal cells are dark gray or black. Poly-crystal cells are blue
speckled. Some large modules are 20 volt instead of 24 volt. These can be used
for charging 12 to 48 volt batteries by using the proper MPPT (Maximum Power
Point Tracking) charge
controller. Connectors - Modules with Connectors do not have a regular junction box. Instead they have pre-wired leads with a male and female plugs for connecting. These plugs are easily connected in series for 24 volt and higher voltages. Special wiring cables are ordered separately to run between modules and combiner box. These durable connectors can save installation time and are popular in larger systems. |
 |
|
REC Alpha Pure Series
Emerging from REC’s leadership in half-cut cell technology, the Alpha Pure
is built around 132 half-cut heterojunction cells (HJT) and advanced
connection technology, designed by engineering experts from Germany and
Singapore. With HJT, REC combines the benefits of crystalline silicon
solar cells with those of thin film technologies for much higher
efficiency and energy yield, even at higher temperatures.
Other product highlights:
• Black backsheet (up to 405 Wp).
• REC’s pioneering and award-winning ‘Twin Panel’ design: Introduced in
2014, this delivers demonstrably better performance in shaded conditions.
• REC’s commercialized half-cut cell technology: The Alpha Pure features
high efficiency n-type mono wafers between thin layers of amorphous
silicon.
• REC’s unique frame design: The 30 mm thin frame construction allows more
panels per pallet, an easy installation and allows the Alpha to withstand
snow loads of 7000Pa.
• Industry-leading warranty: 25-year product warranty on installations by
REC Solar Professionals (otherwise 20 years), and a 25-year power output
warranty.
• Even better for the environment: Manufacturing of REC Alpha Pure solar
panels requires less energy, which is further reducing the carbon
footprint.
A ‘best-choice’ product with strong added value With panel power reaching 405 Wp, the Alpha delivers highly impressive power density of 219 watts/m˛, a key consideration when space is tight – like on any rooftop. With the REC Alpha Pure Series' innovative gapless cell layout uses the entire panel surface to generate power, which translates to higher output from less space. This reduces the Balance of System (BoS) costs. In addition to better economics, users can also look forward to an increase in the value of their property: several studies in various countries show that a premium solar installation on the roof is adding value to the property and is a highly desired extra for home-buyers, not least due to the better energy performance rating. |
|
Modules larger than 165 watts are
normally too
large for UPS shipping and will ship via motor freight. For Truck shipping, the cost about the same
for 1-6 modules.
Full pallets offer the lower cost per module.
The electrical specs are at Standard Testing Conditions.
| Connector Type |
Number of cells |
Model | Watts |
Nominal Voltage |
Volts |
Voc Open Circuit |
Amps |
Isc Short Circuit |
Max Breaker Size |
Inches | LBS | Price |
| Dasol | Made in China. 25 year power warranty. 3 year workmanship warranty. | |||||||||||
| MC4 | 36 | DSA18-60 | 60 | 12 | 18 | 22.3 | 3.33 | 3.64 | 6 | 28 x 27 x 2 | 15 | |
| MC4 | 36 | DSA18-135 | 135 | 12 | 18 | 22.3 | 7.5 | 8.18 | 12 | 54 x 28 x 2 | 28 | |
| ALT | Made in China. 25 year power warranty. 3 year workmanship warranty. | |||||||||||
| MC4 | ALT100-12M Mono-Crystal | 100 | 12 | 17.7 | 21.61 | 5.65 | 5.74 | 15 | 40.2 X 26.4 X 1.4 | 16.5 | ||
| MC4 | ALT150-12P | 150 | 12 | 18.01 | 22.32 | 8.33 | 8.86 | 15 | 58.3 x 26.4 x 1.4 | 25.4 | ||
| MC4 | ALT165-12P Mono | 165 | 12 | 18.72 | 23.12 | 8.82 | 9.49 | 15 | 58.3 x 26.4 x 1.4 | 25.4 | ||
| Aptos Solar | Designed in USA. Bifacial mono-crystal cells. 30 year product and 30 year power warranty. | |||||||||||
| Staubil EVO2 | 108 | DNA-108-BF-400 | 400/500 | 20 | 31.28 | 37.18 | 12.79 | 12.99 | 30 | 67.7 x 44.6 x 1.3 | 48.5 | $152 |
| Staubil EVO2 | 120 | DNA-120-BF-440 | 440/550 | 24 | 34.71 | 41.51 | 12.68 | 12.88 | 30 | 74.9 x 44.6 x 1.3 | 50.2 | $176 |
| Canadian Solar | Made in Thailand with mono-crystal cells. All-black, PERC 25 year workmanship, 25 year power warranty. | |||||||||||
| MC4 | 132 half | CS3N-390MS | 390 | 24 | 34.5 | 41.7 | 8.48 | 9.18 | 20 | 76.4 x 41.3 x 1.38 | 49.6 | |
| MC4 | 108 | CS6R-395 | 395 | 24 | 30.6 | 36.6 | 12.91 | 13.77 | 25 | 67.8 x 44.6 x 1.38 | 49.4 | $155 |
| MC4 BiFacial | 144 Half | CS6W540M | 540 | 24 | 41.3 | 49.2 | 13.08 | 13.9 | 30 | 89.2 x 44.6 x 1.38 | 71 | |
| Hyperion Solar | Bifacial mono-crystal PERC cells. 12 year workmanship, 30 year power warranty. | |||||||||||
| 108 | HYDH108P8-395 | 395/494 | 20 | 30.84 | 36.98 | 12.81 | 13.70 | 30 | 68 x 44.7 x 1.18 | 50 | $118 | |
| 108 | HYDH108P8-400 | 400/500 | 20 | 31.01 | 37.07 | 12.90 | 13.79 | 30 | 68 x 44.7 x 1.18 | 50 | $128 | |
| Longi Solar | Made in Malaysia mono-crystal cells. 25 year linear power warranty. 10 year workmanship warranty. | |||||||||||
| MC4 | LR6-60-290M | 290 | 20 | 31.7 | 38.8 | 9.15 | 9.71 | 15 | 65 x 39 | 40 | ||
| MC4 | LR6-60HPH-320M | 320 | 20 | 33.9 | 40.6 | 9.43 | 9.94 | 20 | 66.3 x 39.2 x 1.38 | 42 | ||
| WC4 | LR4-60HPB-350M | 350 | 24 | 34.4 | 40.4 | 10.18 | 11.16 | 20 | 69.1 x 40.9 x 1.38 | 43 | ||
| MC4 | 144 half | LR6-72PH380M | 380 | 24 | 40.6 | 49.0 | 9.38 | 9.96 | 20 | 77 x 39 x 1.57 | 50 | |
| Mission Solar | Made in USA with mono-crystal cells. All-black, PERC and 5 bus bars. 25 year linear power warranty. | |||||||||||
| MC4 | MSE360SQ6S | 360 | 24 | 39.28 | 48.08 | 9.28 | 9.79 | 15 | 78.23 x 39.33 x 1.57 | 47.6 | ||
| MC4 | MSW60A310 | 310 | 20 | 33 | 41.14 | 9.4 | 10.2 | 20 | 64.57 x 39.06 x 1.57 | 41.9 | ||
| REC | Made in Singapore with poly-crystal or mono-crystal cells. 25 year power warranty. 20 year workmanship warranty. | |||||||||||
| MC4 | 144 half | REC370TP2SM72 | 370 | 24 | 39.8 | 47.8 | 9.3 | 9.85 | 25 | 78.94 x 39.4 x 1.18 | 48.5 | $120 |
| MC4 |
REC375TP2SM72 Mono |
375 | 24 | 40.1 | 47.4 | 9.36 | 10.04 | 25 | 78.9 x 39.4 x 1.2 | 48.5 | ||
| MC4 | REC375AA Mono/Amorphous | 375 | 24 | 37.8 | 44.2 | 9.94 | 10.58 | 25 | 67.8 x 40 x 1.2 | 43 | ||
| MC4 | REC365A Mono/Amorphous | 365 | 24 | 38 | 44.3 | 9.6 | 10.26 | 25 | 67.8 x 40 x 1.2 | 43 | ||
| MC4 | 120 half | REC365AA Black Mono/Amorphous | 365 | 24 | 37.1 | 44 | 9.85 | 10.52 | 25 | 67.8 x 40 x 1.2 | 43 | |
| MC4 | 120 half | REC395AAPURE Mono | 395 | 24 | 71.7 x 40 x 1.2 | 45 | ||||||
| MC4 | 120 half |
REC400AA Mono/Amorphous |
405 | 24 | 42.4 | 48.9 | 9.56 | 10.3 | 25 | 71.7 x 40 x 1.2 | 45 | |
| MC4 | REC360TP4 Black, Mono | 360 | 24 | 69.1 x 40.94 x 1.2 | 44 | |||||||
| MC4 | REC365NP2 Black, Mono | 365 | 24 | 69.1 x 40.94 x 1.2 | 44 | |||||||
| MC4 | REC345TP2S72 | 345 | 24 | 38.7 | 46.5 | 8.92 | 9.36 | 20 | 78.9 x 39.4 x 1.2 | 48.5 | ||
| MC4 | REC350TP2S-72 | 350 | 24 | 38.9 | 46.7 | 9 | 9.72 | 20 | 78.9 x 39.4 x 1.2 | 48.5 | ||
| Solarever | Made in Mexico with mono-crystal half cells. 25 year power warranty. 12 year product warranty. Minimum purchase is 10 like modules for shipping requirements. A small quantity of the 370 watt modules are available for local pickup. | |||||||||||
| MC4 Black 60cell | 120 half | SE365M120 | 365 | 24 | 34.4 | 41.4 | 10.62 | 11.26 | 20 | 69.09 x 40.87 x 1.37 | 43 | |
| MC4 Black 60 cell | 120 half | SE370M120 | 370 | 24 | 34.6 | 41.6 | 10.7 | 11.34 | 20 | 69.09 x 40.87 x 1.37 | 43 | $279 |
| MC4 Black 60cell | 120 half | SE410M120 | 410 | 20 | 31.35 | 37.12 | 13.08 | 13.96 | 20 | 67.87 x 44.64 x 1.37 | 47.4 | |
| MC4 Silver 72cell | 144 half | SE455M144 | 455 | 24 | 41.51 | 49.35 | 10.96 | 11.44 | 20 | 82.44 x 40.86 x 1.37 | 51.8 | $298 |
| MC4 Silver 72 cell | 144 half | SE540144 | 540 | 24 | 41.55 | 49.5 | 13 | 13.81 | 25 | 89.72 x 44.64 x 1.37 | 63 | |
| Hanwha | Made in Korea with mono-crystal cells. 25 year power warranty. 12 year product warranty. | |||||||||||
| MC4 | 120 half | Q.PEAK DUO G6+340 | 340 | 24 | 33.94 | 40.66 | 10.02 | 10.52 | 20 | 68.5 x 40.5 x 1.26 | 43.9 | |
| MC4 | 144 half | Q.PEAK DUO L-G5.2 395 | 395 | 24 | 40.71 | 48.74 | 9.7 | 10.19 | 20 | 79.3 x 39.4 x 1.38 | 51.8 | |
| MC4 | 132 half | Q.PEAKDUO BLK ML-G10+ | 400 | 24 | 37.13 | 45.3 | 10.77 | 11.14 | 20 | 74 X 41.1 X 1.26 | 48.5 | |
| MC4 | 156 half | Q.PEAK DUO XL-G10-480 | 480 | 24 | 44.85 | 53.62 | 10.7 | 11.25 | 20 | 86.9 x 40.8 x 1.38 | 58.4 | |
|
PV Module MC4 Output Cables |
 |
|
Cables have a male fitting on one end and a female fitting on the other end. Use to extend module cables or cut wire in two and connect modules to a wiring box or to your own wiring. Modules with connectors are easily connected in series by plugging one module's positive connector to the next module's negative connector and so on. A cable is needed for each set of modules. 10 AWG |
||||
| Model | Length | LBS | Price | |
| D154 | 15' | 5 | $19 | |
| D151 | 50' | 10 | $42 | |
| D152 | 100' | 20 | $82 | |
MC4 Connector Disconnect Key 1 lb shipping $12 Used to unlock connecter. You can also use needle nose pliers or your fingers to push in the locking tabs.
