AIR Wind Turbines
for 12, 24, 48 volt battery systems. |
 |
|
LAND models
AIR 40
and AIR MaX are most popular for cabins, homes, RVs and tiny houses. |
||
|
Order turbine and control panel together for greater savings! |
||
| LAND gray body | AIR MaX gray body AIR Silent X white body | MARINE white body |
|
|
|
 |
|

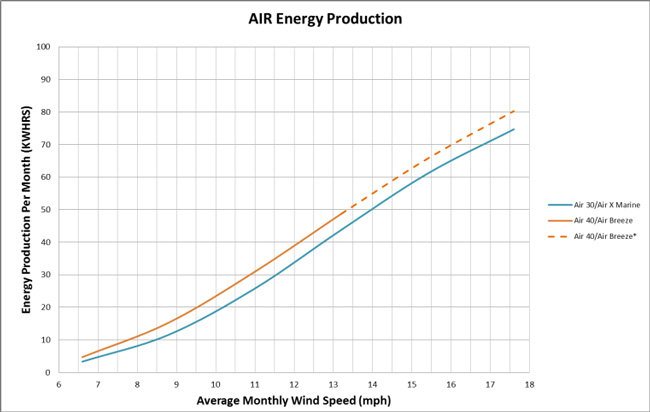

Monthly Energy Production Estimated kilowatt-hours (kwh) per month generated for each model at different average wind speeds (mph).Local conditions can change energy production. The tower top wind speed is used for calculations. Wind speed is normally stronger with height and has less turbulence. Tall towers are recommended, but short towers are sometimes okay if there are not a lot of obstacles to create turbulence. Turbulence puts more wear on the turbine. Try to mount turbine 20' above trees and buildings within a 250' radius. |
||||||||
| Average Wind Speed | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| AIR 40 or Breeze | 12 | 17 | 22 | 31 | 40 (12v 95 amp-hr per day) | 48 | ||
| AIR 30, MaX, X Marine, Silent X | 9 | 14 | 19 | 26 | 30 (12v 90 amp-hr per day) | 40 | 50 | 58 |
This very popular, easy to mount, compact unit is only 13 lbs
and has a 46" rotor diameter. The body is cast aluminum, alternator is
three-phase brushless permanent magnet and the rotor blades are molded plastic/fiberglass
or the
quieter and slightly more durable Carbon Fiber blades used on the AIRMaX™ and AIR Silent-X™.
The built-in adjustable micro-processor voltage regulator
with LED status indicator on turbine bottom provides DC output. Mounts to a 1.5" inside diameter schedule
40 steel pipe (about 1.9" O.D.) or chain link fence tubing. The positive
and negative DC wiring with a ground, travels down
inside of the pipe. Has 7-8 mph start up speed with full power at 25-28 mph
and reduced charging in winds over 35 mph with internal electronic over-speed torque control.
Rated 90mph survival speed. AIR 40™ and AIR Breeze™
are rated 160 watts with a 220 watt peak. The other models are rated 400 watts
with a 440 watt peak. The AIR 40™ and AIR Breeze™
even though the are rated less watts will produce more power in areas with less
than 13 mph average.
Charging starts at about 450 rpm. Full power is at 1200 or 1800 rpm depending on
blade type. Now 3 designs of Blades - loud, quiet, and very quiet.
Upgrade your older AIR turbine with the new super quiet blades.
AIR 30™ and AIR X
Marine™ use molded plastic/fiberglass blades turning 1800 rpm, are narrower, flexible, and louder
>100
decibels
AIR 40™ and AIR Breeze™
use molded plastic/fiberglass blades turning 1200 rpm, are wider, stiffer, and quieter
<65 decibels
AIR MaX™ and AIR Silent
X™ use multi-color, carbon fiber blades turning 1800 rpm, are aerodynamic and very
quiet <40 decibels
MARINE models are painted white and better protected for salt air environments.
The family of AIR wind turbines have been In production since 1995 with
continued improvements on performance and durability.
Use several units
for more power. Industry leading 5 year factory limited warranty.
|
LAND Units Gray Unpainted Body |
LAND Units with Digital Control Panel |
|
12 volt AIR 40
W157 20
lbs $1050 Special $1000 24 volt AIR 40 W158 20 lbs $1050 Special $1000 48 volt AIR 40 W159 20 lbs $1050 Special $1000 |
12 volt AIR 40
W157a 22 lbs
$1380 Special $1289 |
|
12 volt AIR 30
W160 20 lbs
$1050 Special $1000 24 volt AIR 30 W161 20 lbs $1050 Special $1000 48 volt AIR 30 W162 20 lbs $1050 Special $1000 |
12 volt AIR 30
W160a 22 lbs
$1380 Special
$1289 24 volt AIR 30 W161a 22 lbs $1380 Special $1289 48 volt AIR 30 W162a 22 lbs $1380 Special $1289 |
|
12 volt AIR MaX W163 20 lbs
$1470 Special $1400 24 volt AIR MaX W164 20 lbs $1470 Special $1400 48 volt AIR MaX W165 20 lbs $1470 Special $1400 |
12 volt AIR MaX W163a 22 lbs
$1800 Special $1680 24 volt AIR MaX W164a 22 lbs $1800 Special $1680 48 volt AIR MaX W165a 22 lbs $1800 Special $1680 |
| MARINE Units White Painted Body |
MARINE Units with Digital Control Panel |
|
12 volt AIR Breeze W166
20 lbs $1320 Special $1249 24 volt AIR Breeze W167 20 lbs $1320 Special $1249 48 volt AIR Breeze W168 20 lbs $1320 Special $1199 |
12 volt AIR Breeze W166a
22 lbs $1650 Special
$1530 24 volt AIR Breeze W167a 22 lbs $1650 Special $1530 48 volt AIR Breeze W168a 22 lbs $1650 Special $1530 |
|
12 volt AIR X W169 20 lbs
$1320 Special $1249 24 volt AIR X W170 20 lbs $1320 Special $1249 48 volt AIR X W171 20 lbs $1320 Special $1249 |
12 volt AIR X W169a 22 lbs
$1650 Special $1530 24 volt AIR X W170a 22 lbs $1650 Special $1530 48 volt AIR X W171a 22 lbs $1650 Special $1530 |
|
12 volt Silent X W172 20
lbs $1630 Special $1550 24 volt Silent X W173 20 lbs $1630 Special $1550 48 volt Silent X W174 20 lbs $1630 Special $1550 |
12 volt Silent X W172a 22
lbs $1960 Special $1820 24 volt Silent X W173a 22 lbs $1960 Special $1820 48 volt Silent X W174a 22 lbs $1960 Special $1820 |
|
Digital
Meter Control Panel |
Simplifies installation and provides important operational information. Displays battery voltage, accumulated watt hours (with reset button), charging amps and watts. Also has Run/Stop turbine switch, On/Off circuit breaker, and 8 AWG wiring terminal block for positive and negative turbine and battery. Adapt to larger wire if needed by splicing a few inches of 8 AWG wire. Mount indoors, plastic box is 6.5" x 4.25" x 2.5" 3 lbs shipping $330 Special $319 |
|
|
|
 |
|
|
5 models based on
voltage and turbine model.
|
||
| 48 volt AIR 40 or Breeze, 5 amp breaker 2ARACD5 | ||
| 24 volt AIR 40 or Breeze, 10 amp breaker 2ARACD10 | ||
|
12 volt AIR
40/Breeze, 20 amp breaker
2ARACD20 48 volt AIR 30 / AIR MaX / AIR Silent X / AIR X Marine , 20 amp 2ARACD20 |
||
| 24 volt AIR 30 / AIR MaX / AIR Silent X / AIR X Marine, 25 amp 2ARACD25 | ||
| 12 volt AIR 30 / AIR MaX / AIR Silent X / AIR X Marine, 40 amp 2ARACD40 | ||
 |
 |
 |
|
 |
|||
| Wind Turbine output is reduced about 3% for each 1000' above sea level due to thinner air. Cold air is more dense than hot air, so turbines produce more power at cold temperatures. | |||
| TOWERS Includes Couplers, Guy Wires and Hardware. (pipe not included to save shipping cost - source locally) | Shipping | Price | Special | ||
| 27' Guyed Kit | Pipe needed: 24', 3' and 6' for base. | W120 | 20 lbs | $300 | $275 |
| 45' Guyed Kit | Pipe needed: 24', 21', 6' for base, 21' for gin pole. | W121 | 30 lbs | $500 | $460 |
| 36" Galvanized Augers | Set of 4 Earth Anchors | 33 lbs | $200 | $169 | |
| 48" Galvanized Augers | Set of 4 Earth Anchors | 38 lbs | $300 | $249 | |
|
BLADES |
|||||
| AIR 40 or Breeze | Set of 3 Blades, Bolts, Tef Gel, Allen Key | $145 | |||
| AIR 30 or X | Set of 3 Blades, Bolts, Tef Gel, Allen Key | $145 | |||
| AIR MaX or Silent X | Set of 3 Multi-Color Carbon Fiber Blades, Bolts, Tef Gel, Allen Key | $325 | |||
| Upgrade older noisy AIR Turbines with the New, Very Quiet Blades | |||||
| LAND Upgrade | Set of 3 Multi-Color Carbon Fiber Blades, Hub, Grey Nose Cone, Hardware | $400 | |||
| MARINE Upgrade | Set of 3 Multi-Color Carbon Fiber Blades, Hub, White Nose Cone, Hardware | $400 | |||
|
100 amp Breaker
12, 24, 32 volt, waterproof, |
 |
50 amp Breaker, 12-24 volt, manual reset. D119 1 lb $35 Special $5 30 amp Breaker, 12-24 volt, manual reset. D117 1 lb $35 Special $5 |
|
 |
 |
